1 - Prerequisites

TODO: establish learning preparation and what already needs to be installed.

2 - Getting Started

Let's start with a new project; call it todos. In a console:

sc-init todos
cd todos
sc-server

Browse to localhost:4020/todos and you should see the "Welcome to SproutCore!" window.

Let's also "sanity-check" that our test framework is working AND let's anticipate that we're going to write integration tests:

1. Create folder tests under apps/todos.
2. Create folder integration under app/todos/tests.
3. Add the following test, sanity_check.js, under apps/todos/tests:

"apps/todos/tests/sanity_check.js"
module('Sanity Check');
test('This should pass', function() {
    ok(true);
});

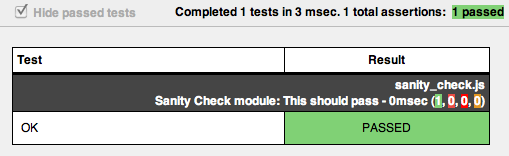

Now, browse to http://localhost:4020/todos/en/current/tests.html and you should see the following:

If you have this, we're all set up and you can proceed; otherwise debug first.

3 - Test a View

Let's write a test to see the page display an existing task (which doesn't, of course, exist yet):

"apps/todos/tests/integration/view_task.js"
var task;
module("Given an existing task", {
  setup: function() {
    SC.RunLoop.begin();
    Todos.main();
    task = Todos.store.createRecord(Todos.Task, {
      'description': 'Some Task',
      'isDone': false
    });
    SC.RunLoop.end();
  },

  teardown: function() {
    SC.RunLoop.begin();
    Todos.getPath('mainPage.mainPane').remove();
    Todos.store.reset();
    SC.RunLoop.end();
  }
});

test("When looking at the list of tasks", function() {
  var todosList = Todos.getPath('mainPage.mainPane.middleView.contentView').get('content');
  equals(todosList.indexOf(task) != -1, true, "Then I should see the task in the list");
});

Store the above javascript into apps/todos/tests/integration/view_task.js.

Here's what the above test does:

Within the setup, I'm starting the actual application within the page, and creating the existing record which I want to display. Within the teardown, there are two steps that I've found are necessary to "stop" the application. The first is to remove the pane, and the second is to clear the database.

To begin with here, in order to check that the item is on the page, I'm merely testing that it is within the content of the listView which is going to display the item. I could check here the display is showing the description of the item, and that the checkbox is not checked, but that's a bit more details than I care about at this point.

Rerun the tests and you will see 2 failures:

3.1 - Fix the First Failure

The first failure is telling me that Todos.Task doesn't exist, so I have to create it:

"apps/todos/models/task.js"
Todos.Task = SC.Record.extend({
  isDone: SC.Record.attr(Boolean),
  description: SC.Record.attr(String)
}) ;

I rerun my tests, and see that the first failure is now passing, leaving me only with the second:

This failing test tells me the path for the requested view does not exist, so I have to modify apps/todos/resources/main_page.js to include it:

"apps/todos/resources/main_page.js"
Todos.mainPage = SC.Page.design({
  mainPane: SC.MainPane.design({
    childViews: 'middleView'.w(),

    middleView: SC.ScrollView.design({
      childViews: 'contentView'.w(),

      contentView: SC.ListView.design({

      })
    })
  })
});

This changes the failure to the following:

This is telling me that the content of the ListView is null. So what I need to do is bind the contentView to a controller for the tasks, so I do that by modifying the main_page again:

"apps/todos/resources/main_page.js"
Todos.mainPage = SC.Page.design({
  mainPane: SC.MainPane.design({
    childViews: 'middleView'.w(),

    middleView: SC.ScrollView.design({
      childViews: 'contentView'.w(),

      contentView: SC.ListView.design({
        contentBinding: 'Todos.tasksController.arrangedObjects' //ADDED THIS
      })
    })
  })
});

Now the error is:

Hmm. todosList is null. There isn't any content, so the binding isn't working. Examining main_page.js reveals that no controller has been set up yet, so create it in apps/todos/controllers/tasks.js:

"apps/todos/controllers/tasks.js"
Todos.tasksController = SC.ArrayController.create({
}) ;

Rerunning the test yields the error:

So now my test is telling me that the item is not found in the view. This is because the controller has not had its content set to use Todos.task.

4 - Failure is Actually Success! Time to Refactor!

Finally, instead of ERROR, we've achieved FAILURE. Our test assertion failed. This is expected because we haven't provided the controller with a list of task items. So, in a sense, we have success, in the sense that now might be a good time to refactor. After refactoring, we should continue to get the same error as above.

So what should we refactor?

The first really brittle piece of the code that I noticed is where I was using getPath to reach into the view and find elements. By using a long string like 'mainPage.mainPane.middleView.contentView' I'm coupling a good number of my tests to the current structure of my views. In order to fix this, and to give the element a description that is closer to our domain, we can refactor this dependency to use SC.outlet:

//Replace instances which look like:
Todos.getPath('mainPage.mainPane.middleView.contentView')
//With something that looks like this:
Todos.mainPage.todosList();

//And add the following to main_page.js
Todos.mainPage = SC.Page.design({
  todosList: SC.outlet('mainPane.middleView.contentView'),
  // ...
})

What SC.outlet does is generate a computed property that will look up the passed property path the first time you try to get the value. This fixes the anti-pattern by defining the tight coupling in only one place.

Here's the new code:

"apps/todos/resources/main_page.js"
Todos.mainPage = SC.Page.design({
  mainPane: SC.MainPane.design({
    childViews: 'middleView'.w(),

    middleView: SC.ScrollView.design({
      childViews: 'contentView'.w(),

      contentView: SC.ListView.design({
        contentBinding: 'Todos.tasksController.arrangedObjects' //ADDED THIS
      })
    })
  }),
  todosList: SC.outlet('mainPane.middleView.contentView')
});

"apps/todos/tests/integration/view_tasks.js"
var task;
module("Given an existing task", {
  setup: function() {
    SC.RunLoop.begin();
    Todos.main();
    task = Todos.store.createRecord(Todos.Task, {
      'description': 'Some Task',
      'isDone': false
    });
    SC.RunLoop.end();
  },

  teardown: function() {
    SC.RunLoop.begin();
    Todos.getPath('mainPage.mainPane').remove();
    Todos.store.reset();
    SC.RunLoop.end();
  }
});

test("When looking at the list of tasks", function() {
  var todosList = Todos.mainPage.todosList().get('content');
  equals(todosList.indexOf(task) != -1, true, "Then I should see the task in the list");
});

Rerunning the tests yields the same FAILURE, so we achieved our refactoring.

5 - Add a Unit Test

The test fails because the controller has not had it's content to be set to use Todos.task. In order to ensure that controller has not had it's content to be set to use Todos.task, I write the following unit test:

"apps/todos/tests/main_test.js"
var mockedFindFunction, findMockObject;

module("Todos.main", {
  setup: function() {
    mockedFindFunction = Todos.store.find;
    findMockObject = CoreTest.stub('Todos.store.find', function() { return YES; });
    Todos.store.find = findMockObject;
  },

  teardown: function() {
    Todos.store.find = mockedFindFunction;
  }
});

test("setup finding tasks", function() {
  Todos.main();
  equals(findMockObject.callCount, 1, "Should delegate to the store to find the tasks");
  Todos.getPath('mainPage.mainPane').remove();
});

In order to make this pass, within the setup I delegate to the store to find the proper object:

"apps/todos/main.js"
Todos.main = function main() {
  Todos.getPath('mainPage.mainPane').append() ;
  var tasks = Todos.store.find(Todos.Task); //ADDED THIS
} ;

function main() { Todos.main(); }

That makes the unit test that we wrote pass, but the integration test is still failing, so we need to delegate to the controller to set it's content. Here's the unit test to specify that:

"apps/todos/tests/controllers/tasks_test.js"
var mockedSetFunction, mockedFindFunction, setMockObject, findMockObject;
module("Todos.main", {
  setup: function() {
    mockedSetFunction = Todos.tasksController.set; //ADDED THIS
    setMockObject = CoreTest.stub('Todos.tasksController.set', function() { return YES; }); //ADDED THIS
    Todos.tasksController.set = setMockObject; //ADDED THIS

    mockedFindFunction = Todos.store.find;
    findMockObject = CoreTest.stub('Todos.store.find', function() { return YES; });
    Todos.store.find = findMockObject;
    Todos.main();
  },

  teardown: function() {
    Todos.getPath('mainPage.mainPane').remove();
    Todos.tasksController.set = mockedSetFunction;//ADDED THIS
    Todos.store.find = mockedFindFunction;
  }
});

test("setup finding tasks", function() {
  equals(findMockObject.callCount, 1, "Should delegate to the store to find the tasks");
});

test("setup tasksController content", function() {
  equals(setMockObject.callCount, 1, "Should delegate to the tasksController to setup content"); //ADDED THIS
});

And to make this pass, I need to implement that delegation (app/todos/main.js):

"apps/todos/main.js"
Todos.main = function main() {
  Todos.getPath('mainPage.mainPane').append() ;
  var tasks = Todos.store.find(Todos.Task);
  Todos.tasksController.set('content', tasks); //ADDED THIS
};

function main() { Todos.main(); }

And that makes all of our existing tests (both unit and integration) pass.

6 - Reflection on mocking problems.

To be honest, I'm not entirely happy with the mocking that I just did, because I wasn't able to validate what was contained within the messages that were going between the objects. The mock really should be able to do something like wasCalledWith, and give it a parameter. That's what I would generally do in something like Jasmine, but I haven't worked out how to integrate a solid mocking or spying framework with SproutCore yet.

Also, I really should have written the delegation to the controller first, but since I knew I couldn't validate what it was called with it would have missed testing that the main function delegated to the store to find the tasks, so I broke the true BDD cycle there. But, I guess it works for now.

7 - One last thing before moving on

At this point, the view - although it is fully functional - is still quite ugly. Since this is purly aesthetic, I like to wait to style until all my tests are passing. I change main_page.js to be the following:

"apps/todos/resources/main_page.js"
Todos.mainPage = SC.Page.design({
  mainPane: SC.MainPane.design({
    childViews: 'middleView'.w(),

    middleView: SC.ScrollView.design({
      hasHorizontalScroller: NO, //ADDED THIS
      layout: { top: 36, bottom: 32, left: 0, right: 0 }, //ADDED THIS
      backgroundColor: 'white', //ADDED THIS
      childViews: 'contentView'.w(),

      contentView: SC.ListView.design({
        contentBinding: 'Todos.tasksController.arrangedObjects',
        contentValueKey: 'description', //ADDED THIS
        contentCheckboxKey: 'isDone' //ADDED THIS
      })
    }),
  })
});

Generally, since I tend to think of the binding to the description and the value as functionality, I think I would want an integration test which checks both of those values. However for the sake of brevity, I'll leave out those tests.

8 - Changelog

• January 10, 2010: initial blog post by Greg Moeck
• February 15, 2011: initial guides adaptation by Scott Smith and Vibul Imtarnasan
• March 2, 2011: added filenames and added error wrappers by Topher Fangio
• February 17, 2012: added attribution for Greg Moeck in the changelog by Topher Fangio
• August 13, 2013: converted to Markdown format for DocPad guides by Topher Fangio
